Cross

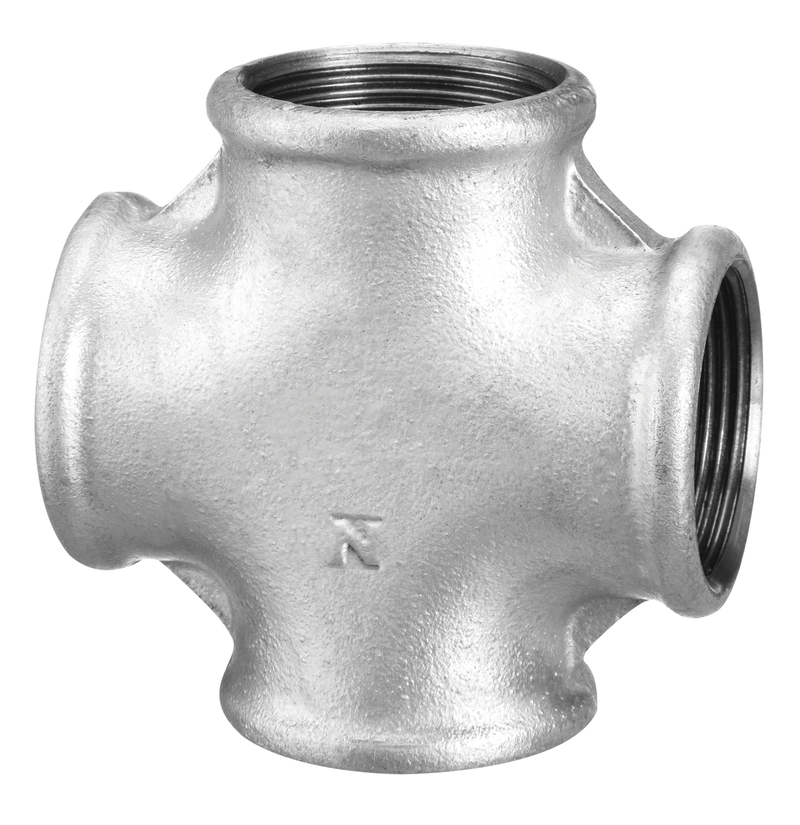

Cross with four female outlets on the same plane (figure 180), to cross two branches or split the line into three directions from one point. Available in 11 sizes, from 1/4" to 4". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Code | Description | Thread | Figure |
| 1218002 | CROSS 1/4″ | BSP | 180 |
| 1218003 | CROSS 3/8″ | BSP | 180 |
| 1218004 | CROSS 1/2″ | BSP | 180 |
| 1218006 | CROSS 3/4″ | BSP | 180 |
| 1218007 | CROSS 1″ | BSP | 180 |
| 1218008 | CROSS 1 1/4″ | BSP | 180 |
| 1218009 | CROSS 1 1/2″ | BSP | 180 |
| 1218010 | CROSS 2″ | BSP | 180 |
| 1218011 | CROSS 2 1/2″ | BSP | 180 |
| 1218012 | CROSS 3″ | BSP | 180 |
| 1218014 | CROSS 4″ | BSP | 180 |
| Diameter (in) | Diameter (mm) | A (mm) | Weight (g) |
| 1/4″ | 8mm | 21 | 75 |
| 3/8″ | 10mm | 25 | 108 |
| 1/2″ | 15mm | 28 | 172 |
| 3/4″ | 20mm | 33 | 235 |
| 1″ | 25mm | 38 | 391 |
| 1.1/4″ | 32mm | 45 | 618 |
| 1.1/2″ | 40mm | 50 | 799 |
| 2″ | 50mm | 58 | 1143 |
| 2.1/2″ | 65mm | 69 | 1973 |
| 3″ | 80mm | 78 | 2699 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
