Male Bend

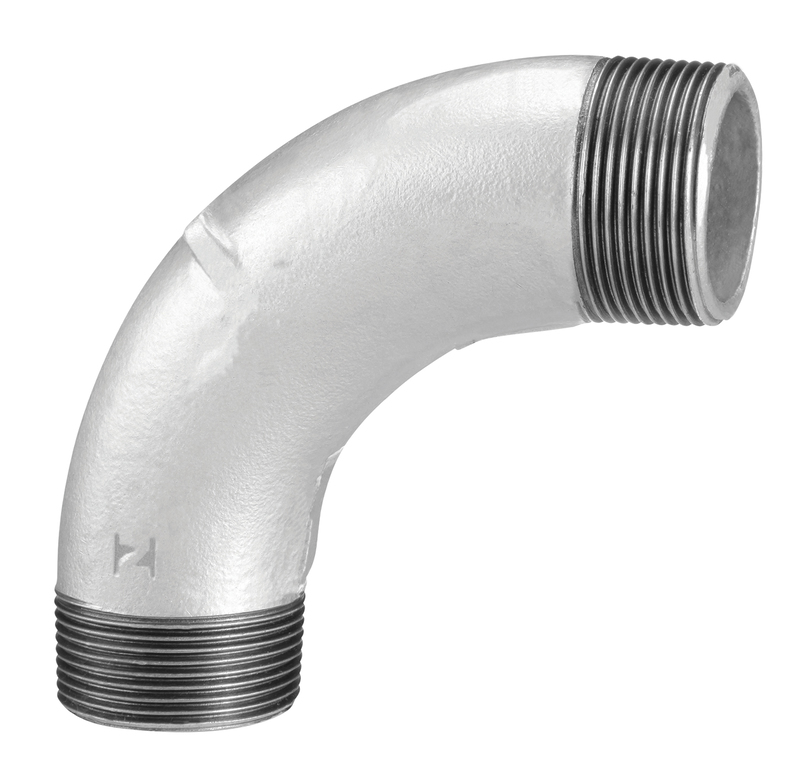

90° bend with male thread (figure 3), to join two female threaded points without nipples. Available in 11 sizes, from 3/8" to 6". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Code | Description | Thread | Figure |
| 1225003 | MALE BENDS 3/8″ | BSP | 3 |
| 1225004 | MALE BENDS 1/2″ | BSP | 3 |
| 1225006 | MALE BENDS 3/4″ | BSP | 3 |
| 1225007 | MALE BENDS 1″ | BSP | 3 |
| 1225008 | MALE BENDS 1 1/4″ | BSP | 3 |
| 1225009 | MALE BENDS 1 1/2″ | BSP | 3 |
| 1225010 | MALE BENDS 2″ | BSP | 3 |
| 1225011 | MALE BENDS 2 1/2″ | BSP | 3 |
| 1225012 | MALE BENDS 3″ | BSP | 3 |
| 1225014 | MALE BENDS 4″ | BSP | 3 |
| 1225016 | MALE BENDS 6″ | BSP | 3 |
| Diameter (in) | Diameter (mm) | A (mm) | Weight (g) |
| 3/8″ | 10mm | 42 | 66 |
| 1/2″ | 15mm | 48 | 104 |
| 3/4″ | 20mm | 60 | 178 |
| 1″ | 25mm | 75 | 352 |
| 1.1/4″ | 32mm | 95 | 581 |
| 1.1/2″ | 40mm | 105 | 734 |
| 2″ | 50mm | 130 | 1370 |
| 2.1/2″ | 65mm | 165 | 2221 |
| 3″ | 80mm | 190 | 3118 |
| 4″ | 100mm | 245 | 5562 |
| 6″ | 150mm | 290 | 14336 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
