Double Sweep Tee

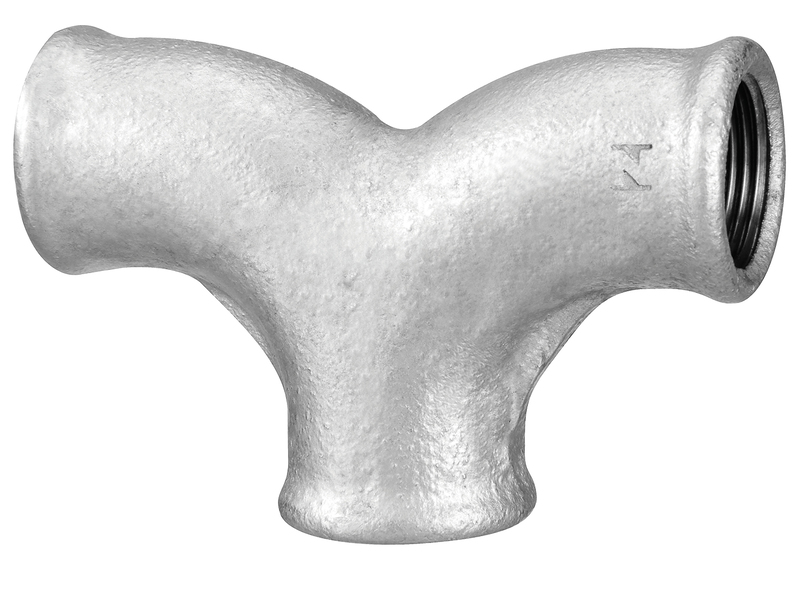

Double sweep tee (figure 132), with both run ends swept 90°, to bring two parallel branches into a single connection. Available in 1/2" and 3/4". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Code | Description | Thread | Figure |
| 1255004 | DOUBLE SWEEP TEE 1/2″ | BSP | 132 |
| 1255006 | DOUBLE SWEEP TEE 3/4″ | BSP | 132 |
| Diameter (in) | Diameter (mm) | A (mm) | Weight (g) |
| 1/2″ | 15mm | 45 | 194 |
| 3/4″ | 20mm | 50 | 289 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
