Reducing Tee

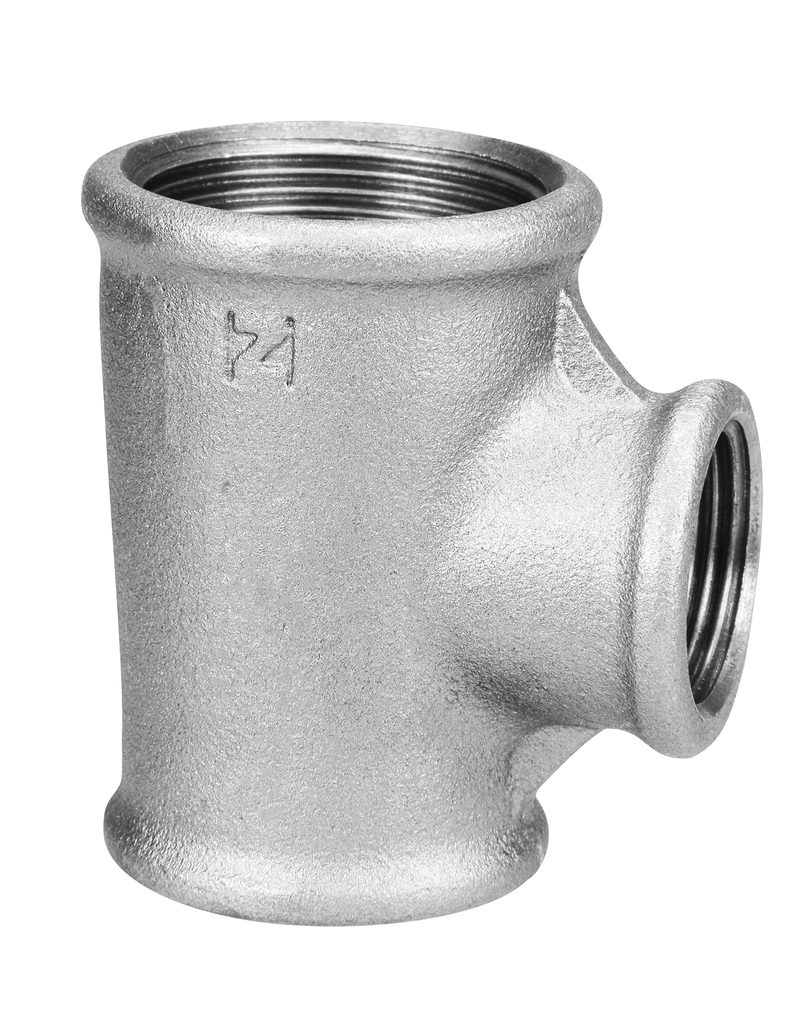

Reducing tee (figure 130R), with the branch in a smaller size than the main line. Available in 40 size combinations, including parts with a double reduction. The table on this page gives the code and the size of each one. BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Code | Description | Size | Figure |
| 1245023 | REDUCING TEES | 1/4 x 3/8 | 130R |
| 1245025 | REDUCING TEES | 1/4 x 1/2 | 130R |
| 1245026 | REDUCING TEES | 3/8 x 1/2 | 130R |
| 1245028 | REDUCING TEES | 3/8 x 3/4 | 130R |
| 1245031 | REDUCING TEES | 3/8 x 1 | 130R |
| 1247129 | REDUCING TEES | 3/4 x 1/2 x 1/2 | 130R |
| 1245029 | REDUCING TEES | 1/2 x 3/4 | 130R |
| 1245032 | REDUCING TEES | 1/2 x 1 | 130R |
| 1245035 | REDUCING TEES | 1/2 x 1 1/4 | 130R |
| 1245039 | REDUCING TEES | 1/2 x 1 1/2 | 130R |
| 1245043 | REDUCING TEES | 1/2 x 2 | 130R |
| 1245033 | REDUCING TEES | 3/4 x 1 | 130R |
| 1245036 | REDUCING TEES | 3/4 x 1 1/4 | 130R |
| 1245040 | REDUCING TEES | 3/4 x 1 1/2 | 130R |
| 1245044 | REDUCING TEES | 3/4 x 2 | 130R |
| 1247135 | REDUCING TEES | 1 1/4 x 1/2 x 1 | 130R |
| 1247137 | REDUCING TEES | 1 1/4 x 1 x 1 | 130R |
| 1246233 | REDUCING TEES | 1 x 3/4 | 130R |
| 1245037 | REDUCING TEES | 1 x 1 1/4 | 130R |
| 1245041 | REDUCING TEES | 1 x 1 1/2 | 130R |
| 1245045 | REDUCING TEES | 1 x 2 | 130R |
| 1245048 | REDUCING TEES | 1 x 2 1/2 | 130R |
| 1245052 | REDUCING TEES | 1 x 3 | 130R |
| 1247139 | REDUCING TEES | 1 1/2 x 1/2 x 1 1/4 | 130R |
| 1247141 | REDUCING TEE | 1 1/2 x 1 x 1 1/4 | 130R |
| 1248137 | REDUCING TEES | 1 1/4 x 1 | 130R |
| 1245042 | REDUCING TEES | 1 1/4 x 1 1/2 | 130R |
| 1245046 | REDUCING TEES | 1 1/4 x 2 | 130R |
| 1245049 | REDUCING TEES | 1 1/4 x 2 1/2 | 130R |
| 1245053 | REDUCING TEES | 1 1/4 x 3 | 130R |
| 1247146 | REDUCING TEES | 2 x 1 x 1 1/2 | 130R |
| 1245047 | REDUCING TEES | 1 1/2 x 2 | 130R |
| 1245050 | REDUCING TEES | 1 1/2 x 2 1/2 | 130R |
| 1245054 | REDUCING TEES | 1 1/2 x 3 | 130R |
| 1245051 | REDUCING TEES | 2 x 2 1/2 | 130R |
| 1245055 | REDUCING TEES | 2 x 3 | 130R |
| 1245058 | REDUCING TEES | 2 x 4 | 130R |
| 1245056 | REDUCING TEES | 2 1/2 x 3 | 130R |
| 1245059 | REDUCING TEES | 2 1/2 x 4 | 130R |
| 1245060 | REDUCING TEES | 3 x 4 | 130R |
| Diameter (in) | Diameter (mm) | A (mm) | B (mm) | Weight (g) |
| 3/8″x1/4″ | 10mm x 8mm | 23 | 23 | 71 |
| 1/2″x1/4″ | 15mm x 8mm | 24 | 24 | 96 |
| 1/2″x3/8″ | 15mm x 10mm | 26 | 26 | 129 |
| 3/4″x3/8″ | 20mm x 10mm | 28 | 28 | 168 |
| 3/4″x1/2″ | 20mm x 15mm | 30 | 31 | 181 |
| 1″x3/8″ | 25mm x 10mm | 30 | 32 | 203 |
| 1″x1/2″ | 25mm x 15mm | 32 | 34 | 233 |
| 1″x3/4″ | 25mm x 20mm | 35 | 36 | 252 |
| 1.1/4″x1/2″ | 32mm x 15mm | 34 | 38 | 307 |
| 1.1/4″x3/4″ | 32mm x 20mm | 36 | 41 | 228 |
| 1.1/4″x1″ | 32mm x 25mm | 40 | 42 | 371 |
| 1.1/2″x1/2″ | 40mm x 15mm | 36 | 42 | 390 |
| 1.1/2″x3/4″ | 40mm x 20mm | 38 | 44 | 405 |
| 1.1/2″x1″ | 40mm x 25mm | 42 | 46 | 451 |
| 1.1/2″x1.1/4″ | 40mm x 32mm | 46 | 48 | 556 |
| 2″x1/2″ | 50mm x 15mm | 38 | 48 | 545 |
| 2″x3/4″ | 50mm x 20mm | 40 | 50 | 589 |
| 2″x1″ | 50mm x 25mm | 44 | 52 | 667 |
| 2″x1.1/4″ | 50mm x 32mm | 48 | 54 | 729 |
| 2″x1.1/2″ | 50mm x 40mm | 52 | 55 | 793 |
| 2.1/2″x1″ | 65mm x 25mm | 47 | 60 | 933 |
| 2.1/2″x1.1/4″ | 65mm x 32mm | 52 | 62 | 1176 |
| 2.1/2″x1.1/2″ | 65mm x 40mm | 55 | 63 | 1257 |
| 2.1/2″x2″ | 65mm x 50mm | 61 | 66 | 1473 |
| 3″x1″ | 80mm x 25mm | 51 | 67 | 1276 |
| 3″x1.1/4″ | 80mm x 32mm | 55 | 70 | 1228 |
| 3″x1.1/2″ | 80mm x 40mm | 58 | 71 | 1509 |
| 3″x2″ | 80mm x 50mm | 64 | 73 | 1716 |
| 3″x2.1/2″ | 80mm x 65mm | 72 | 76 | 1931 |
| 4″x2″ | 100mm x 50mm | 70 | 86 | 2347 |
| 4″x3″ | 100mm x 80mm | 84 | 92 | 3307 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
