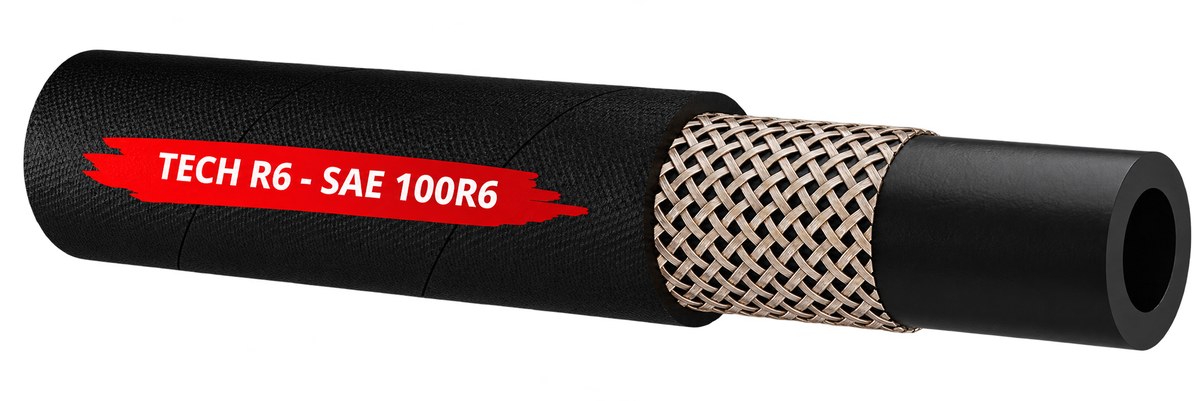

Oil-resistant NBR tube, textile reinforcement and rubber + NBR cover
TECH R6 Hose — SAE 100R6
Line: Industrial Hoses · Industrial
Hose for air, water, gasoline, kerosene, diesel, motor oil and other mineral oils, meeting SAE 100R6, in sizes from 1/4" to 3". Oil-resistant NBR inner tube, multiple textile plies and rubber + NBR cover. Working temperature from -40 °C to +100 °C. Unlike single-rating hoses, the working pressure here falls as the size goes up: from 28 bar (406 psi) at 1/4" to 10 bar (140 psi) at 3", which is why the table gives the rating of every size.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Inside dia. (pol) | Outside dia. (mm) | Working Press. (bar) | Working Press. (PSI) | Burst Press. (bar) | Burst Press. (PSI) | Roll (m) |
| 1/4" | 12,4 | 28 | 406 | 84 | 1.200 | 100 | |
| 5/16" | 14,1 | 24 | 348 | 72 | 900 | 100 | |
| 3/8" | 16 | 24 | 348 | 72 | 900 | 100 | |
| 1/2" | 19,8 | 24 | 348 | 72 | 900 | 100 | |
| 5/8" | 23,4 | 24 | 348 | 72 | 900 | 50 | |
| 3/4" | 27,2 | 24 | 348 | 72 | 900 | 50 | |
| 7/8" | 30,4 | 24 | 348 | 72 | 900 | 50 | |
| 1" | 33,4 | 21 | 310 | 72 | 900 | 50 | |
| 1.1/4" | 42 | 15 | 220 | 63 | 700 | 50 | |
| 1.1/2" | 48 | 10 | 140 | 45 | 500 | 50 | |
| 2" | 63 | 10 | 140 | 30 | 500 | 50 | |
| 2.1/2" | 76 | 10 | 140 | 30 | 500 | 50 | |
| 3" | 90 | 10 | 140 | 30 | 500 | 50 |
