PVC

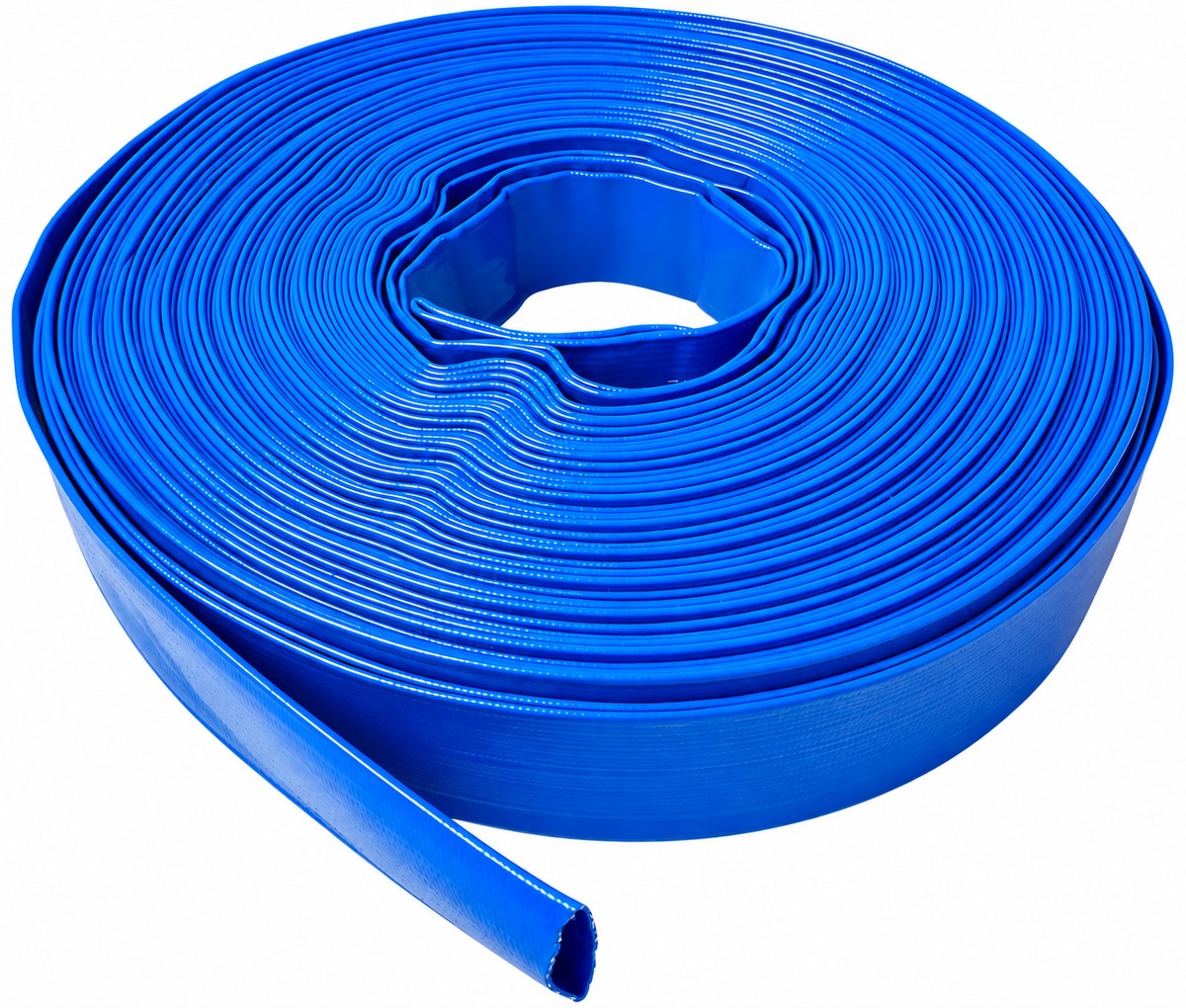

Blue PVC Thermoplastic Lay-Flat Hoses
Blue PVC thermoplastic lay-flat hose with polyester textile reinforcement, for water transfer in water trucks, irrigation, drainage, mining and civil construction. Working temperature: -5°C to +55°C. Supplied in 100 m reels (50 m in 10" and 12").
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Diameter (in) | Diameter (mm) | Working Press. (bar) | Working Press. (PSI) | Working Press. (m H2O) | Burst Press. (bar) | Burst Press. (PSI) | Volume (m³) | Roll (m) |
| 1" | 25 | 5 | 73 | 51 | 15 | 218 | 0,019 | 100 | |
| 1.1/4" | 32 | 5 | 73 | 51 | 15 | 218 | 0,023 | 100 | |
| 1.1/2" | 38 | 5 | 73 | 51 | 15 | 218 | 0,026 | 100 | |
| 2" | 51 | 5 | 73 | 51 | 12 | 174 | 0,039 | 100 | |
| 2.1/2" | 64 | 5 | 73 | 51 | 12 | 174 | 0,047 | 100 | |
| 3" | 76 | 5 | 73 | 51 | 12 | 174 | 0,060 | 100 | |
| 4" | 102 | 5 | 73 | 51 | 12 | 174 | 0,083 | 100 | |
| 5" | 127 | 5 | 73 | 51 | 12 | 174 | 0,109 | 100 | |
| 6" | 153 | 5 | 73 | 51 | 12 | 174 | 0,141 | 100 | |
| 8" | 203 | 5 | 73 | 51 | 12 | 174 | 0,193 | 100 | |
| 10" | 254 | 5 | 73 | 51 | 12 | 174 | 0,178 | 50 | |
| 12" | 305 | 5 | 73 | 51 | 12 | 174 | 0,245 | 50 |
