Tubo em NBR preto, reforço têxtil, espiral metálica e fio de cobre

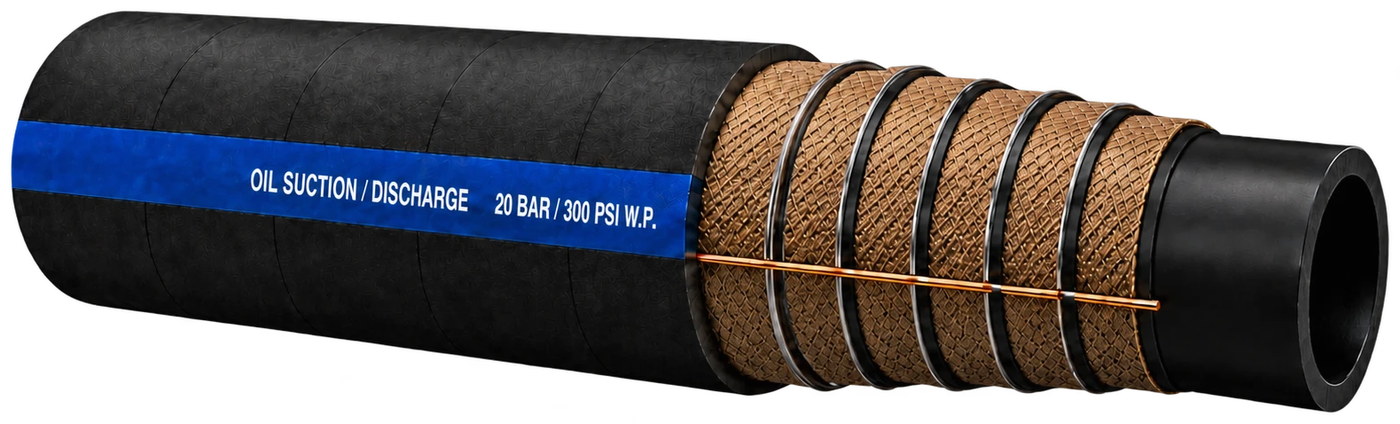

Oil Hose — Suction and Discharge
Line: Industrial Hoses · Suction & Discharge
Rubber hose for suction and discharge of oils, diesel and petroleum products, in sizes from 1" to 6". The inner tube is NBR, a compound that resists oil and fuel: that is what sets this hose apart from a water hose, whose rubber swells on contact with petroleum products. The steel helix embedded in the wall supports the tube under suction, and the cover resists abrasion, ozone and hydrocarbons. Blue identification stripe.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Size | Ø Interno (mm) | Ø Externo (mm) | Parede Nominal (mm) |
| 1" | 25 | 36,2 ± 0,5 | 5,6 ± 0,25 |
| 1.1/4" | 32 | 44 ± 0,5 | 6 ± 0,25 |
| 1.1/2" | 38 | 50 ± 0,5 | 6 ± 0,25 |
| 2" | 51 | 67 ± 1 | 8 ± 0,5 |
| 2.1/2" | 64 | 80 ± 1 | 8 ± 0,5 |
| 3" | 76 | 92 ± 1 | 8 ± 0,5 |
| 4" | 102 | 122 ± 1 | 10 ± 0,5 |
| 6" | On request | On request | On request |
